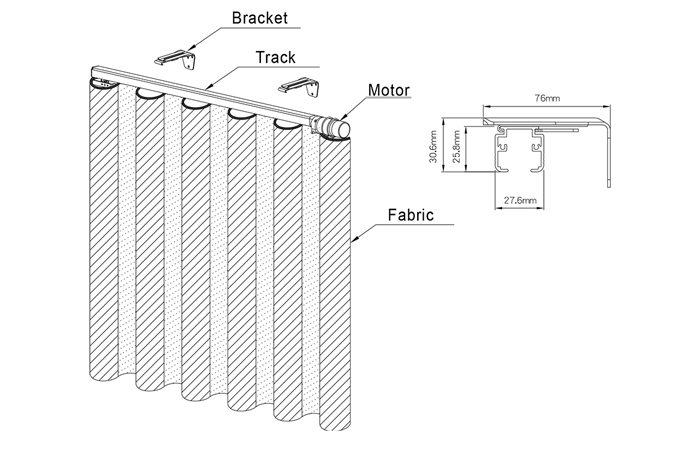

Motorized Ripple Fold Curtain Track

Motorized Ripple Fold Curtain Track

Classic and never out of style.


  1. Gently and continuously fold draperies from the beginning to the end.
  2. Screw rod driven or belt driven.
  3. The track is elegant, safe, durable and affordable.
  4. Simple connectivity, programming and operation.
  5. Opening Direction: One way or central opening.
  6. One touch for controlling the individual or groups of tracks.
  7. Able to be integrated with home automation system.
  8. Built-in dry contact closure interface for direct connection to Automation or Smart Home System.
  9. Designed with reliability and safety – 24V DC transformer.

Motorized ripple fold curtain tracks have a classic look. They are identically beautiful from inside the room or outside the building presenting an architectural advantage. Motorized ripple fold curtain tracks are suited to both commercial and residential installations.

Technical Data:
Working VoltageDC 24V, 1A
Radio Frequency433.92 MHz, ASK
Load Capacity30 kgs(maximun)
Track Length5.4 m(maximun)
Range of Remote Control30 m
PowerAC 100–240V, 50-60Hz
Working VoltageDC 24V, 1A
DirectionCentral or one way opening
